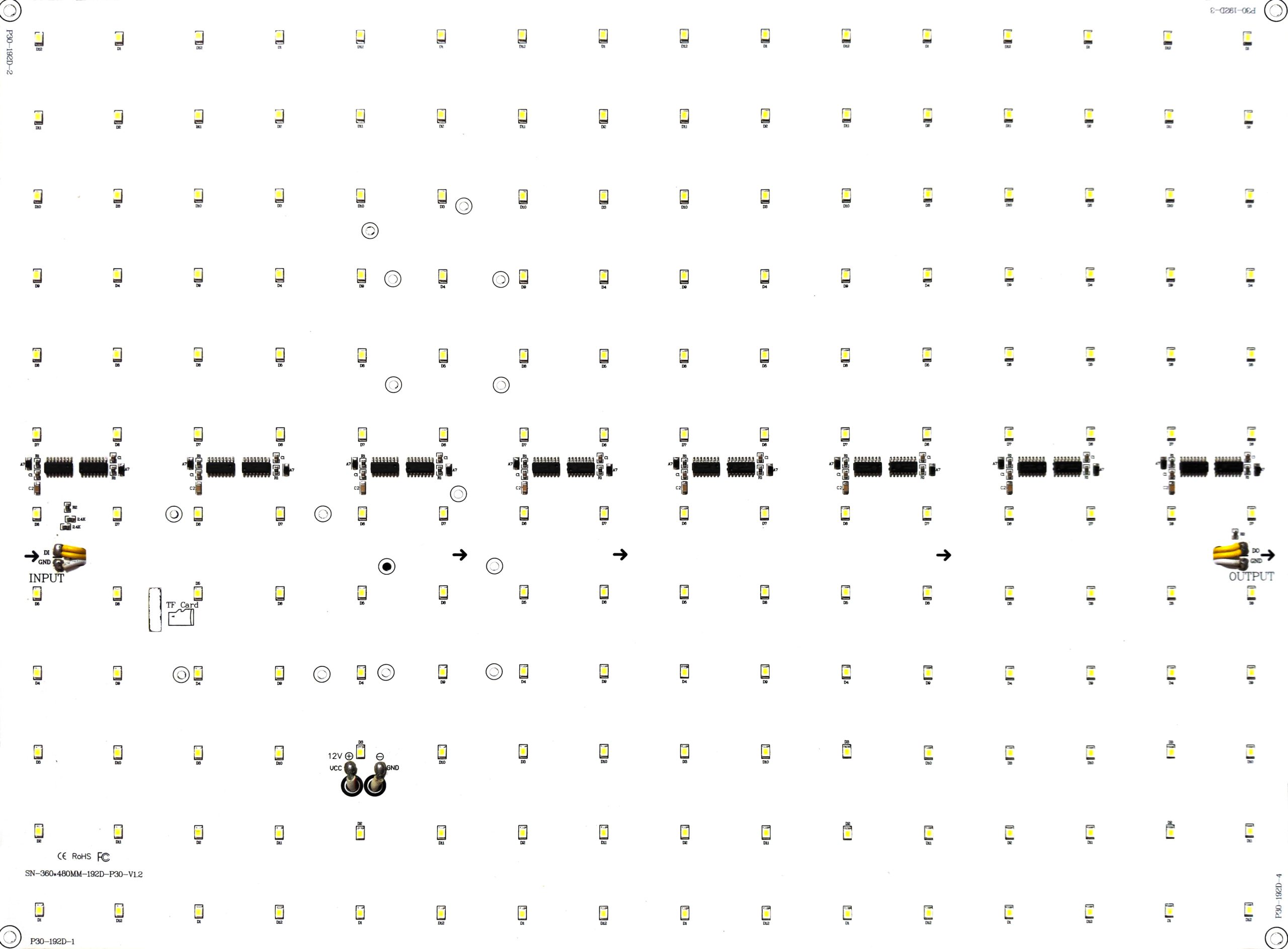

Size: 480*360mm
Voltage: DC12V
Power: 42W
LED source: SMD2835


Best use: widely used in 8-12cm thickness decorative lighting box or ceiling soft film lighting.


ModelVoltageLEDPowerSize A*BView angleColor


  • DC12V low voltage power supply, safe and reliable, constant current IC drive, brightness consistency.
  • Adopt 1.2mm thick and high heat conduction aluminum substrate for heat dissipation to improve the service life of the product.
  • Adopt 9V SMD2835, high brightness, low light fading, good color, long life.
  • The bead spacing is 3CM, running animation is considerable, can be used for > 8CM thick light box and interior decoration lighting and ceiling lighting system.
  • Suitable for the light box size requirements are relatively large, cost-effective, easy to install.
  • Terminal line signal connection, convenient installation and maintenance.
  • Single point single control, no screen flash, no glare, conducive to watching.

Light Distribution


Using parameter

Controller typeSN-K503
Life Span5 year/21900H
Working Temperature-25-60℃
Storage Temperature-25-60℃
Connection TypeType Line and terminal wire
Installation WayST2.9/Tapping Screwrew
Video FormatSWF/AVI



Controller installation diagram


Setup Warning

  1. the lamp board shall be installed IN the direction of the lamp board, the signal line shall be connected IN the direction of the out-in arrow, and the power cord shall be installed IN accordance with the positive and negative instructions.
  2. the personnel receiving electricity must hold the electrician certificate. During the installation, the power should be evenly distributed behind the light box or uniformly placed in the distribution box.
  3. the length of the light box should be determined according to the size of the light board and the thickness of the light box profile.
  4. please refer to the wiring scheme in the connection diagram. The power line shall not be less than 2.5 square meters of pure copper wire national standard electronic wire. The maximum load current per square meter is 8A.
  5. the positive and negative poles of the power supply and the male and female of the signal line should be plugged into each other, and the lamp board should be short-circuited.therefore, the controller should be connected to the DC12V power supply.
  6. if the lamp board is not on when it is live, the signal line shall be broken first and then the power line shall be broken to damage the signal line;
  7. adjust the electric plate to the appropriate torque when installing the lamp plate, select ST2.9 pan head screw, the pan head diameter cannot exceed 8mm, lock the aluminum profile, fix it at 4 corners, prevent excessive force from damaging the lamp plate and bead;
  8. to ensure waterproof and anticorrosive, after the power cord is screwed into the terminal, it is recommended to inject the terminal with single-component silica gel (or neutral glass glue or waterproof grease) to cover the exposed copper wire of the power cord for protection;
  9. please do not touch the product with live electricity or work with live electricity. Please turn off the power when maintaining the light box.
  10. it is recommended to use the switch power (with short-circuit protection, overvoltage protection and overcurrent protection) with 80% power.



Packing instruction

Using pearl cotton interlayer, winding film binding

Carton size: 530*280*320mm

2PCS/inner box,24PCS in 7 layers per carton

NW: 6.57(1±10%)kg


Note: the above package quantity and weight only refer to the package as shown in the figure. When other packages are used, the package quantity and weight will be different. The actual package shall prevail.
