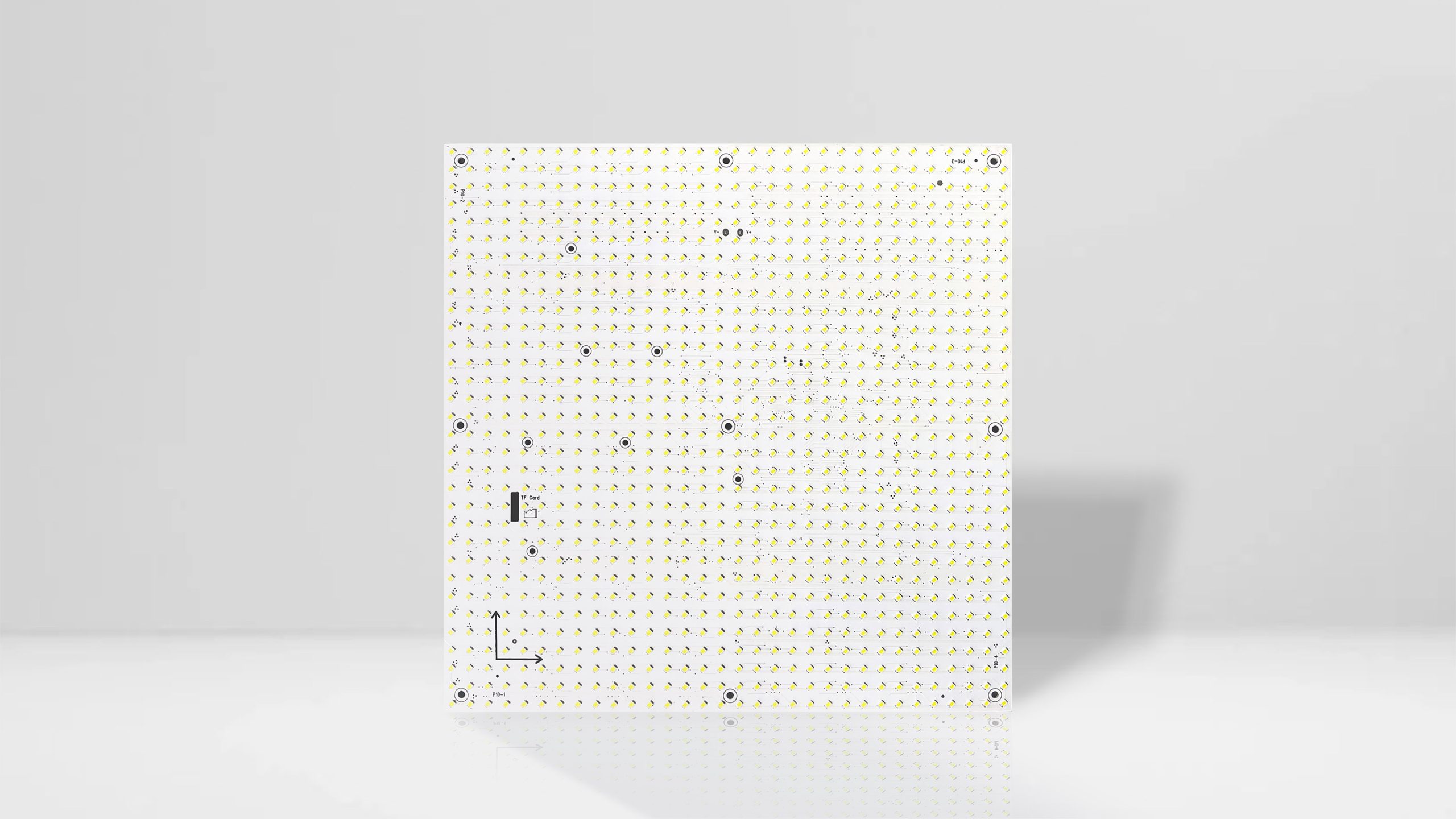

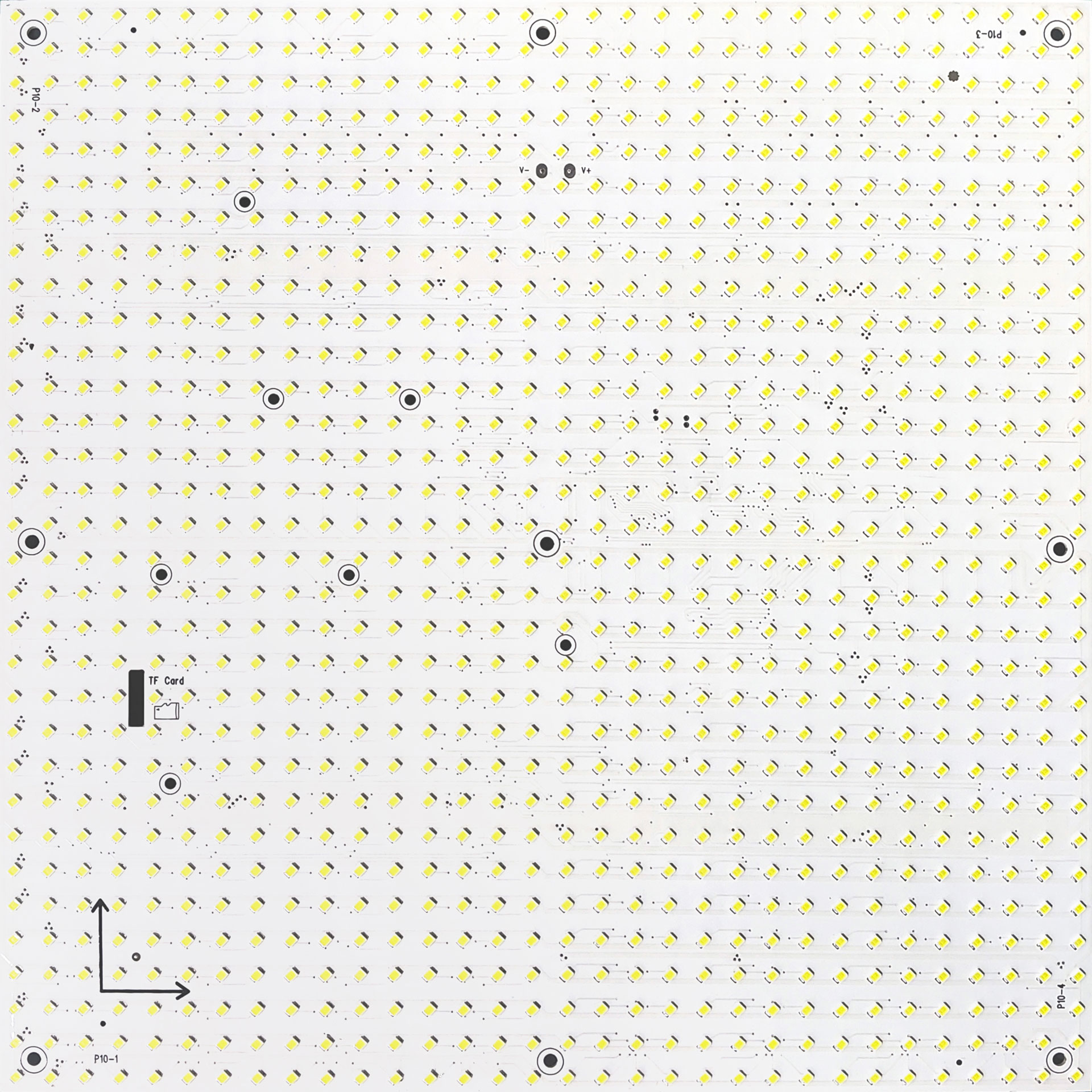

SN-P10-F-W

Size: 320*320mm
Voltage: DC12V
Power: 15W
LED source: SMD2835

Application

Best use: widely used in 4-8cm thickness decorative lighting box or ceiling soft film lighting.

Certification

ModelVoltageLEDPowerSizeLED numberColor
SN-P10-F-W-5DC5VSMD283510W320*320mm1024pcs2700-12000K
SN-P10-F-W-12DC12VSMD283515W320*320mm1024pcs2700-12000K
IPView angleWorking TemperatureCRILED Spacing
IP20120°-40-+60℃≥7010mm

Features

  • DC5V/DC12V low voltage power supply, safe and reliable, constant current IC drive, brightness consistency.
  • Adopt 1.6mm thick double-sided glass fiber board FR4 international material for heat dissipation, with better heat dissipation performance.
  • Adopt 3V SMD2835, high brightness, low light fading, high lumen, good color, long life.

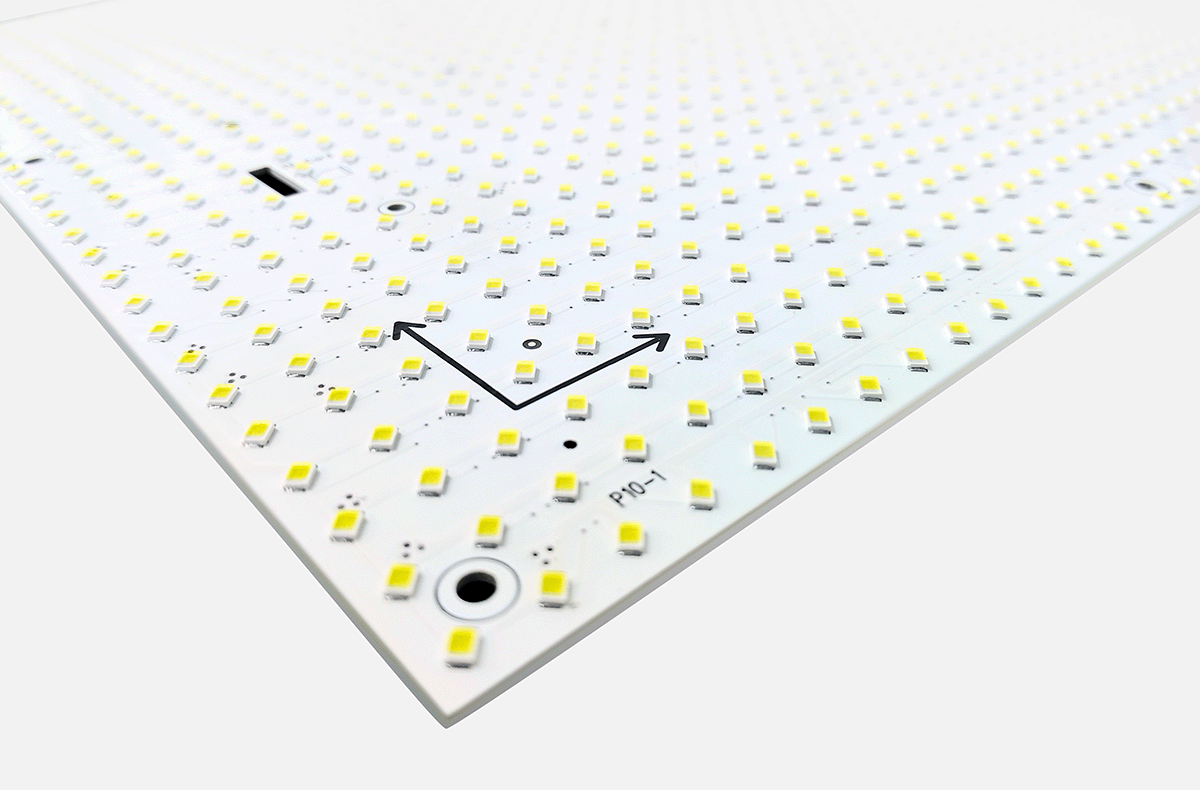

  • The distance between beads is 10mm, the animation is exquisite, it can be used for > 2.5cm thick light box and decorative background.

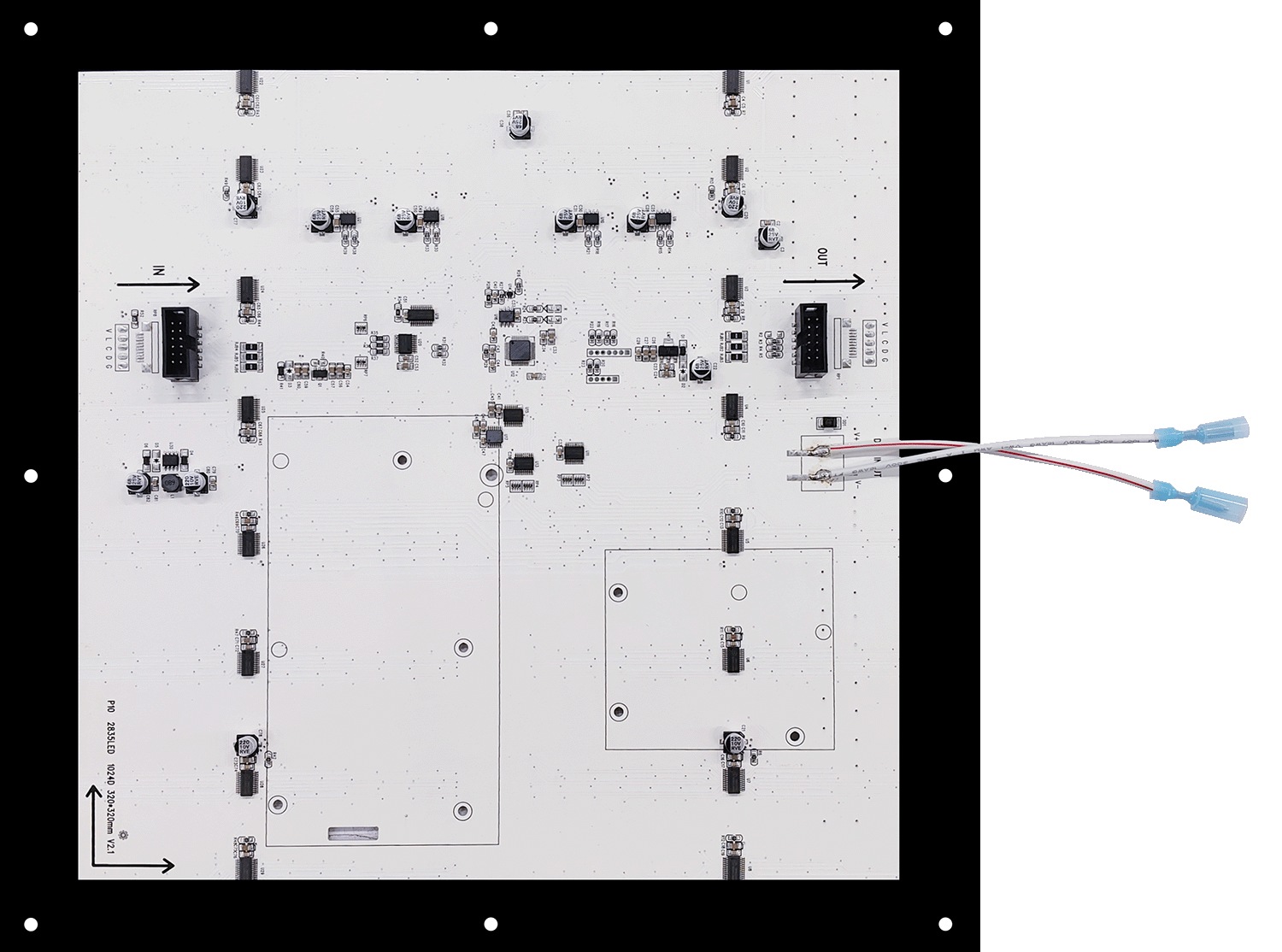

  • Line signal connection, facilitate installation and maintenance, clean wiring.
  • Single point single control, no screen flash, no glare, conducive to watching.

Light Distribution

SN-P10-F-W

Using parameter

LinkPoint10000LED
Controller typeSN-K502
Colorwhite
VoltageDC12V
Weight205g/pcs-1024D
Life Span5 year/21900H
Working Temperature-25-60℃
Storage Temperature-25-60℃
TextureFR4
Connection TypeLine and terminal wire
Thickness1.6mm
Installation WayST2.9/screw
Video FormatSWF/AVI

Dimension(mm)

SN-P10-F-W

Controller installation diagram

SN-P10-F-W
SN-P10-F-W

Setup Warning

  1. the lamp board shall be installed IN the direction of the lamp board, the signal line shall be connected IN the direction of the out-in arrow, and the power cord shall be installed IN accordance with the positive and negative instructions.
  2. the personnel receiving electricity must hold the electrician certificate. During the installation, the power should be evenly distributed behind the light box or uniformly placed in the distribution box.
  3. the length of the light box should be determined according to the size of the light board and the thickness of the light box profile.
  4. please refer to the wiring scheme in the connection diagram. The power line shall not be less than 2.5 square meters of pure copper wire national standard electronic wire. The maximum load current per square meter is 8A.
  5. the positive and negative poles of the power supply and the male and female of the signal line should be plugged in properly, and should not be connected reversely, causing short circuit of the lamp board;
  6. if the lamp board is not on when it is live, the signal line shall be broken first and then the power line shall be broken to damage the signal line;
  7. adjust the electric plate to the appropriate torque when installing the lamp plate, select ST2.9 pan head screw, the pan head diameter cannot exceed 8mm, lock the aluminum profile, fix it at 4 corners, prevent excessive force from damaging the lamp plate and bead;
  8. to ensure waterproof and anticorrosive, after the power cord is screwed into the terminal, it is recommended to inject the terminal with single-component silica gel (or neutral glass glue or waterproof grease) to cover the exposed copper wire of the power cord for protection;
  9. please do not touch the product with live electricity or work with live electricity. Please turn off the power when maintaining the light box.
  10. please do not touch the product with live electricity or work with live electricity. Please turn off the power when maintaining the light box.

Packaging

SN-P10-F-W

Packing instruction

Using pearl cotton interlayer, winding film binding

Adopt inner package size:510*250*40mm

Carton size: 530*280*320mm

2PCS/inner box,14PCS in 7 layers per carton

NW: 6.57(1±10%)kg

GW:8.39(1±10%)kg
