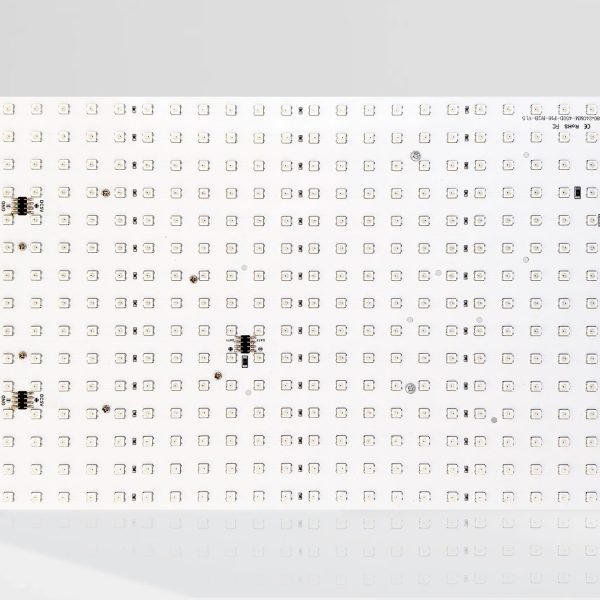

Size: 400*200mm
Voltage: DC5V
Power: 28W
LED source: SMD3535/SMD2835


Best use: widely used in 8-10cm thickness
decorative lighting box or ceiling soft film lighting.


ModelVoltageLEDPowerSize ALED numberColor
View angle
Working Temperature

LED Spacing


  • DC5V low voltage power supply, safe and reliable, constant current IC drive, brightness consistency.

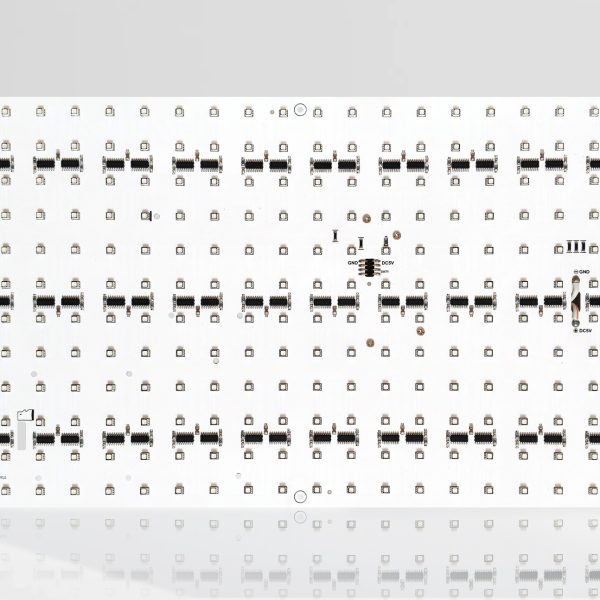

  • Adopt 1.6mm thick and high heat conduction aluminum substrate for heat dissipation to improve the service life of the product.
  • Adopt 3V SMD2835, high brightness, low light fading, good color, long life.
  • The distance between beads is 2CM, the animation operation is meticulous and considerable, and it can be used for > 6CM thick light box.
  • Each lamp bead works independently, damage one does not affect the operation of other lamp bead, free of maintenance.
  • Separate control connection, each lamp board work independently, convenient maintenance and installation.

Light Distribution


Using parameter

Controller typeSN-K503
Weight215 g/pcs-288D
Life Span5 year/21900H
Working Temperature-25-60℃
Storage Temperature-25-60℃
Connection TypeType Line and terminal wire
Connection TypeWaterproof terminal wire
Installation WayST2.9/Tapping Screw
Video FormatSWF/AVI



Controller installation diagram


Setup Warning

  1. the lamp board shall be installed IN the direction of the lamp board, the signal line shall be connected IN the direction of the out-in arrow, and the power cord shall be installed IN accordance with the positive and negative instructions.
  2. the personnel receiving electricity must hold the electrician certificate. During the installation, the power should be evenly distributed behind the light box or uniformly placed in the distribution box.
  3. the length of the light box should be determined according to the size of the light board and the thickness of the light box profile.
  4. please refer to the wiring scheme in the connection diagram. The power line shall not be less than 2.5 square meters of pure copper wire national standard electronic wire. The maximum load current per square meter is 8A.
  5. the positive and negative poles of the power supply and the male and female of the signal line should be plugged in properly, and should not be connected reversely, causing short circuit of the lamp board;
  6. if the lamp board is not on when it is live, the signal line shall be broken first and then the power line shall be broken to damage the signal line;
  7. adjust the electric plate to the appropriate torque when installing the lamp plate, select ST2.9 pan head screw, the pan head diameter cannot exceed 8mm, lock the aluminum profile, fix it at 4 corners, prevent excessive force from damaging the lamp plate and bead;
  8. to ensure waterproof and anticorrosive, after the power cord is screwed into the terminal, it is recommended to inject the terminal with single-component silica gel (or neutral glass glue or waterproof grease) to cover the exposed copper wire of the power cord for protection;
  9. please do not touch the product with live electricity or work with live electricity. Please turn off the power when maintaining the light box.
  10. please do not touch the product with live electricity or work with live electricity. Please turn off the power when maintaining the light box.



Packing instruction

Using pearl cotton interlayer, winding film binding

Carton size: 530*280*320mm

2PCS/inner box,24PCS in 7 layers per carton

NW: 6.57(1±10%)kg


Shenzhen SanNan technology co., ltd. is a high-tech enterprise committed to the research and development, production, sales and service innovation of LED light box lighting, LED indoor and outdoor decorative lighting, LED intelligent control and other products.
